Overview
This article groups pepVet’s 12 general-purpose visualisation
functions by analytical scope. The score diagnostics and weight
sensitivity plots have separate articles. Each function returns a
ggplot or patchwork object for further editing
or export.
Single-protein diagnostics
Four-panel digest profile
plot_digest_profile() combines the length distribution,
GRAVY distribution, sequence coverage, and component scores in one
figure.
bsa_path <- system.file("extdata", "P02769.fasta", package = "pepVet")
bsa_trypsin <- evaluate_digest(bsa_path, enzyme = "trypsin")

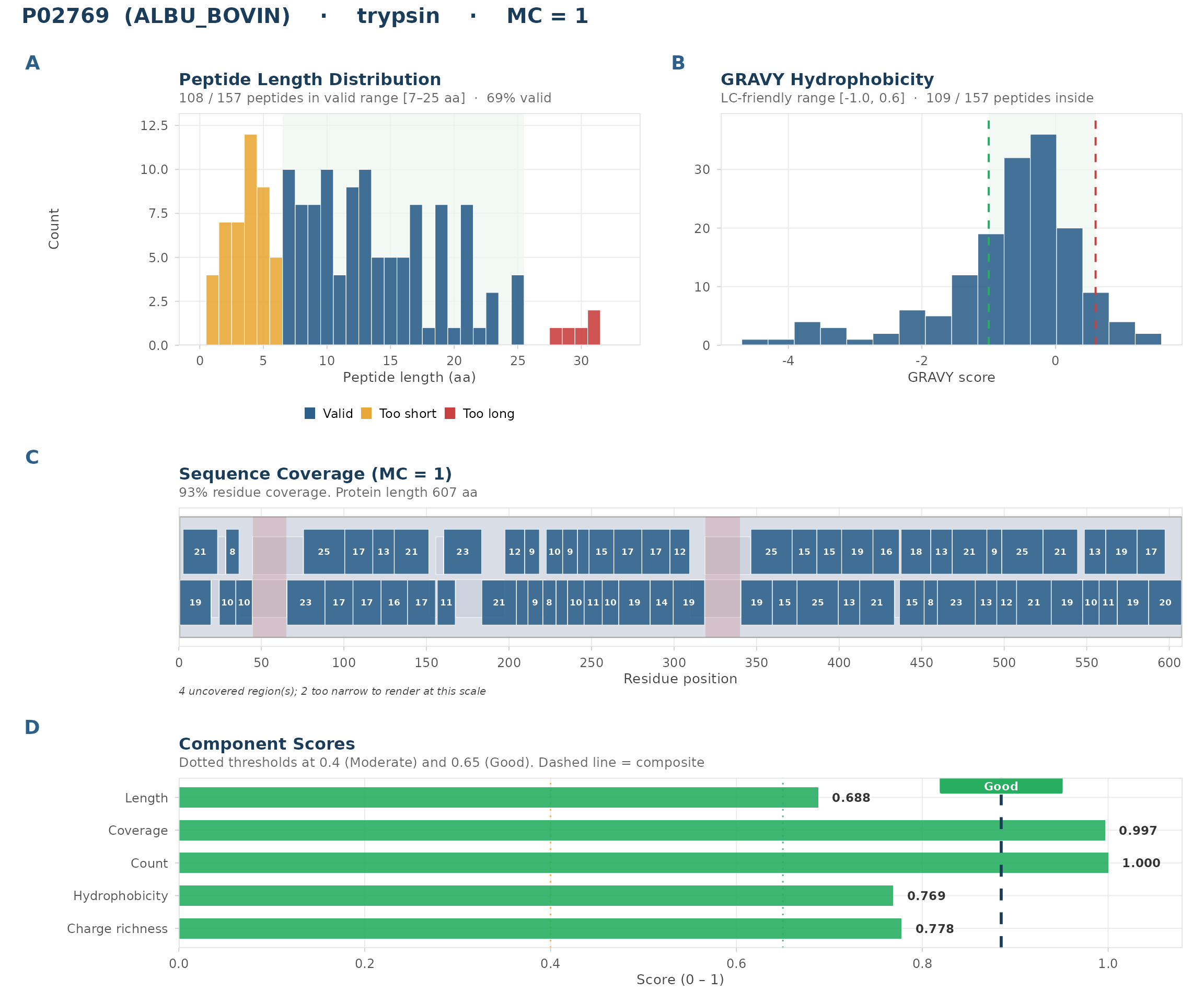

plot_digest_profile(bsa_trypsin)
Coverage map
plot_coverage_map() shows how peptides map onto the
protein sequence, with separate lanes for each missed-cleavage
level.

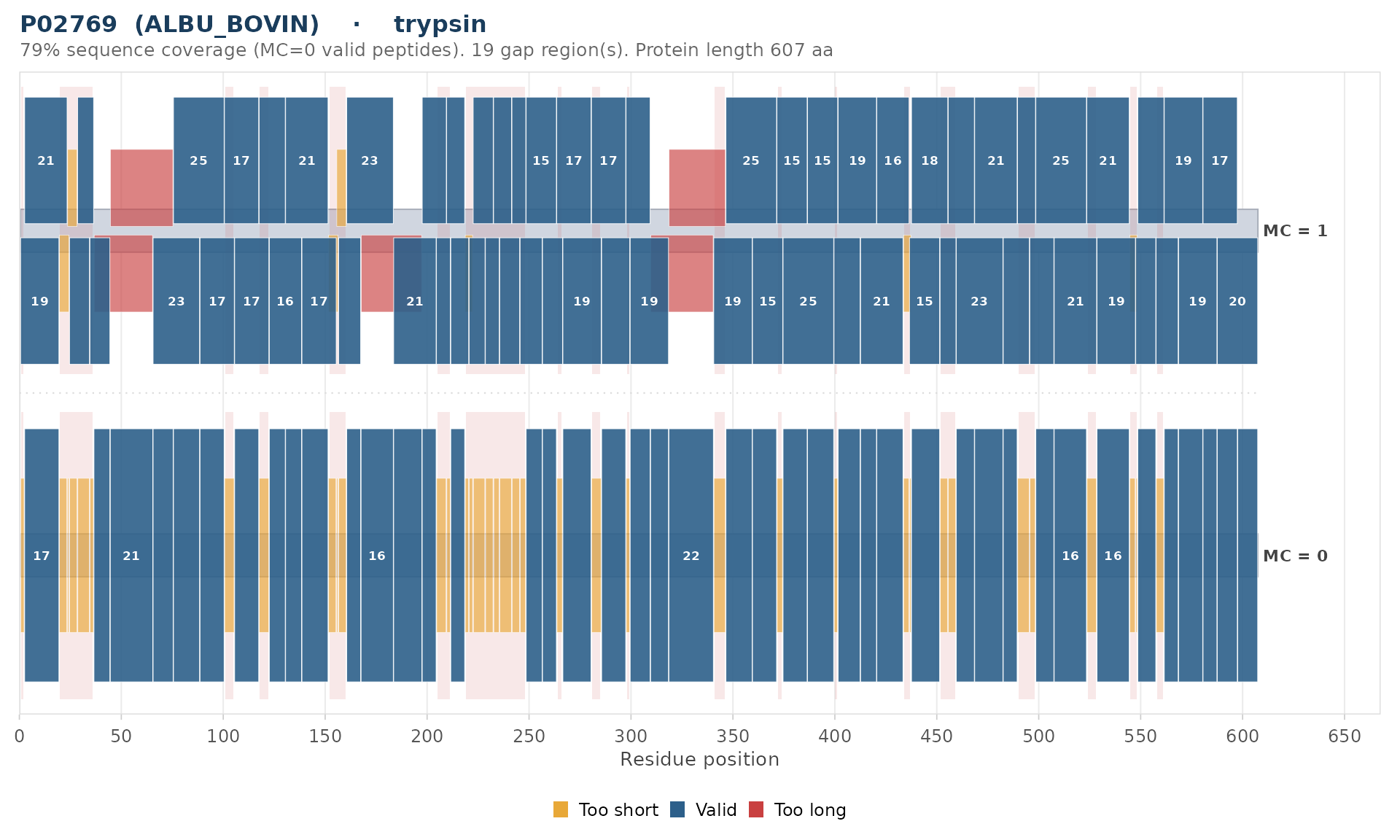

plot_coverage_map(bsa_trypsin, color_by = "length_class")
Cleavage map
plot_cleavage_map() marks every cleavage site and
highlights efficiency when annotation data is available.
cs <- annotate_cleavage_sites(bsa_path, enzyme = "trypsin")

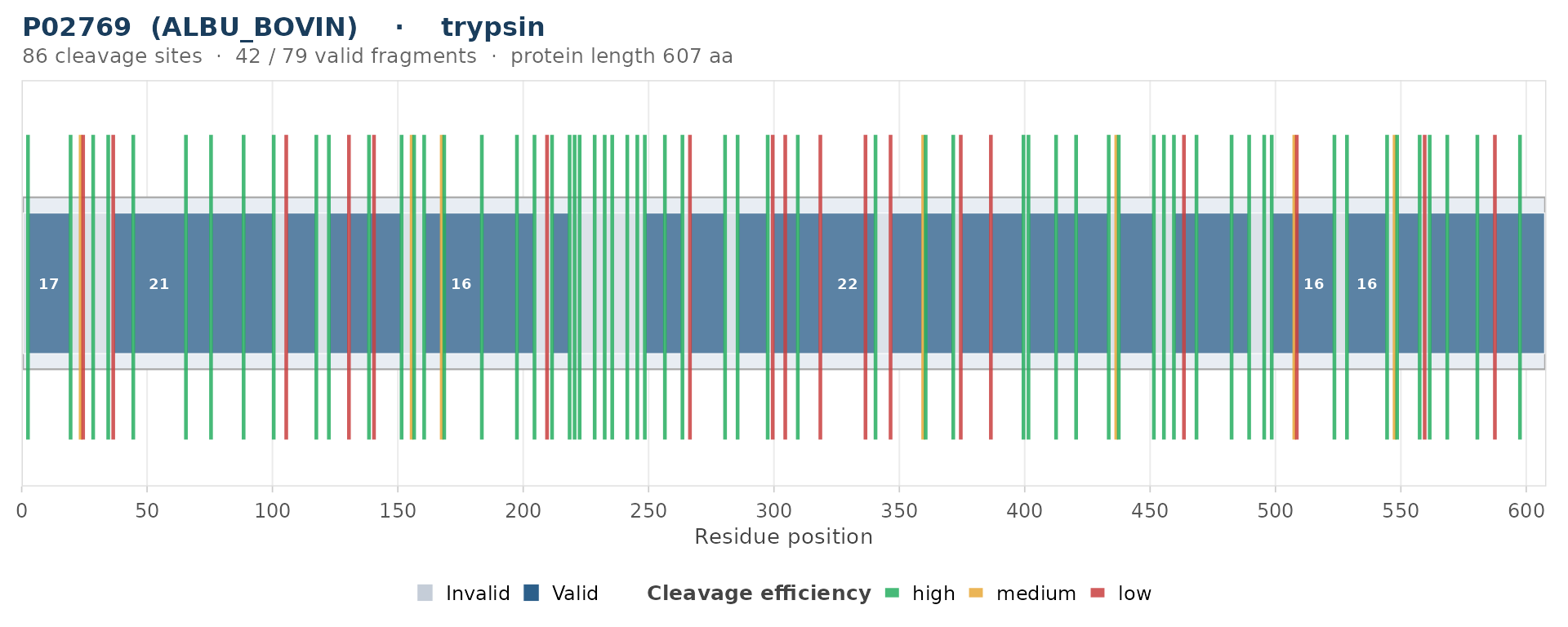

plot_cleavage_map(bsa_trypsin, cleavage_sites = cs)
Peptide overlap map
plot_peptide_overlap_map() colours each residue by the
number of digest peptides that cover it.

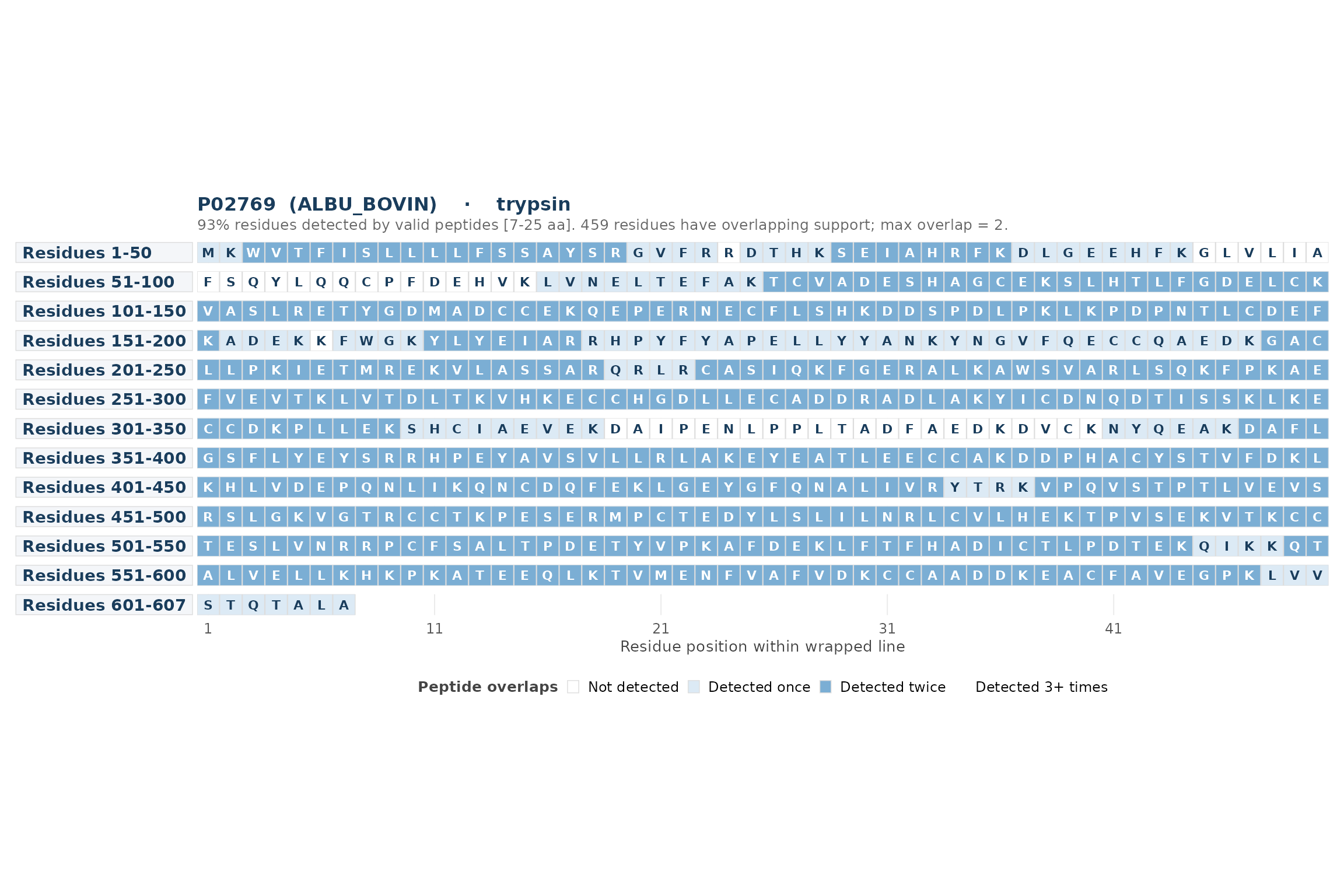

plot_peptide_overlap_map(bsa_trypsin)
Enzyme comparison
plot_enzyme_comparison() compares multiple enzymes on
the same protein using component-score bars and a composite
lollipop.
comp <- compare_digests(bsa_path,
enzymes = c("trypsin", "lysc", "chymotrypsin-high"))

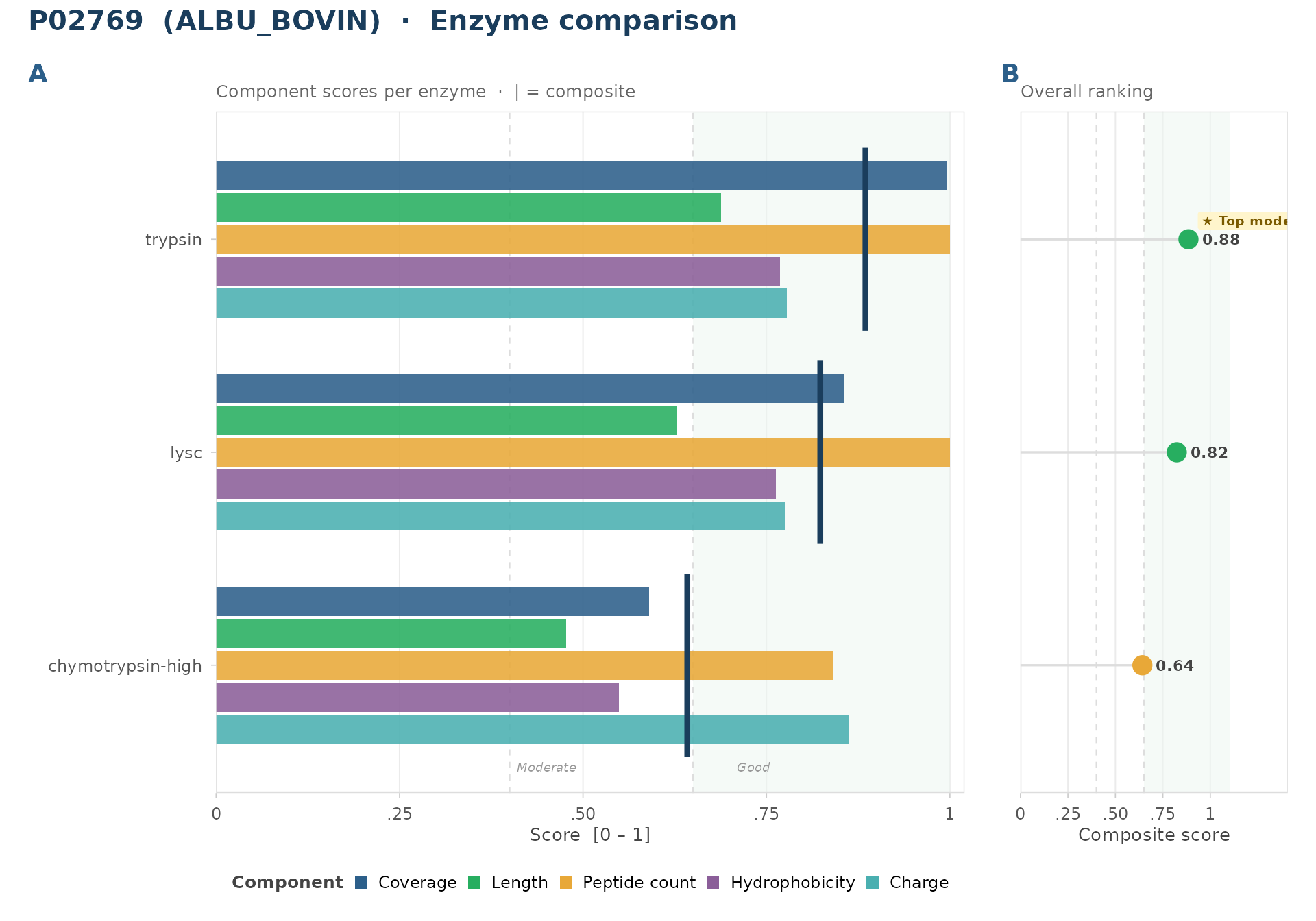

plot_enzyme_comparison(comp)
Physicochemical distributions
GRAVY landscape

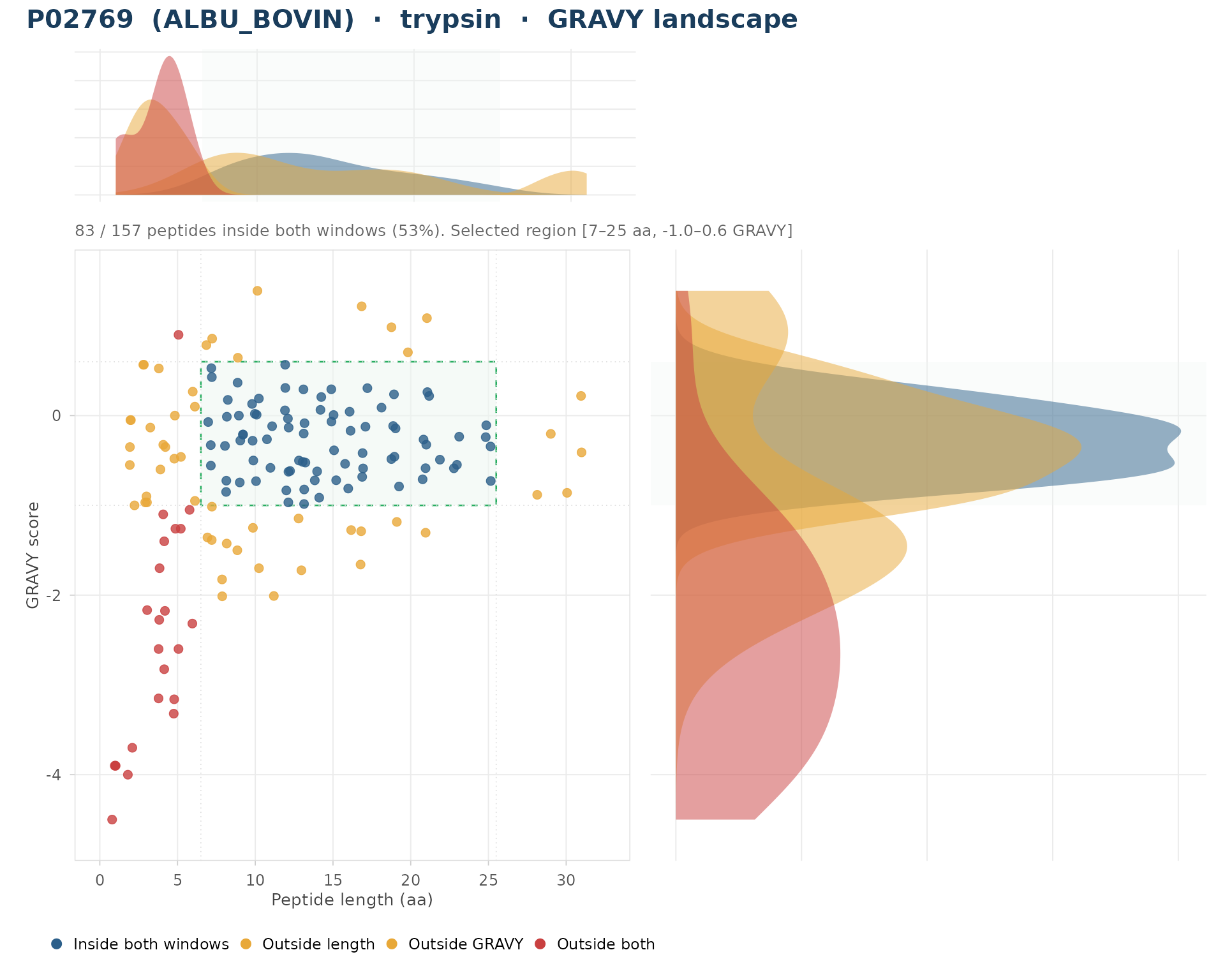

The scatter plot shows peptide length against GRAVY.
plot_gravy_landscape(bsa_trypsin)
pI distribution

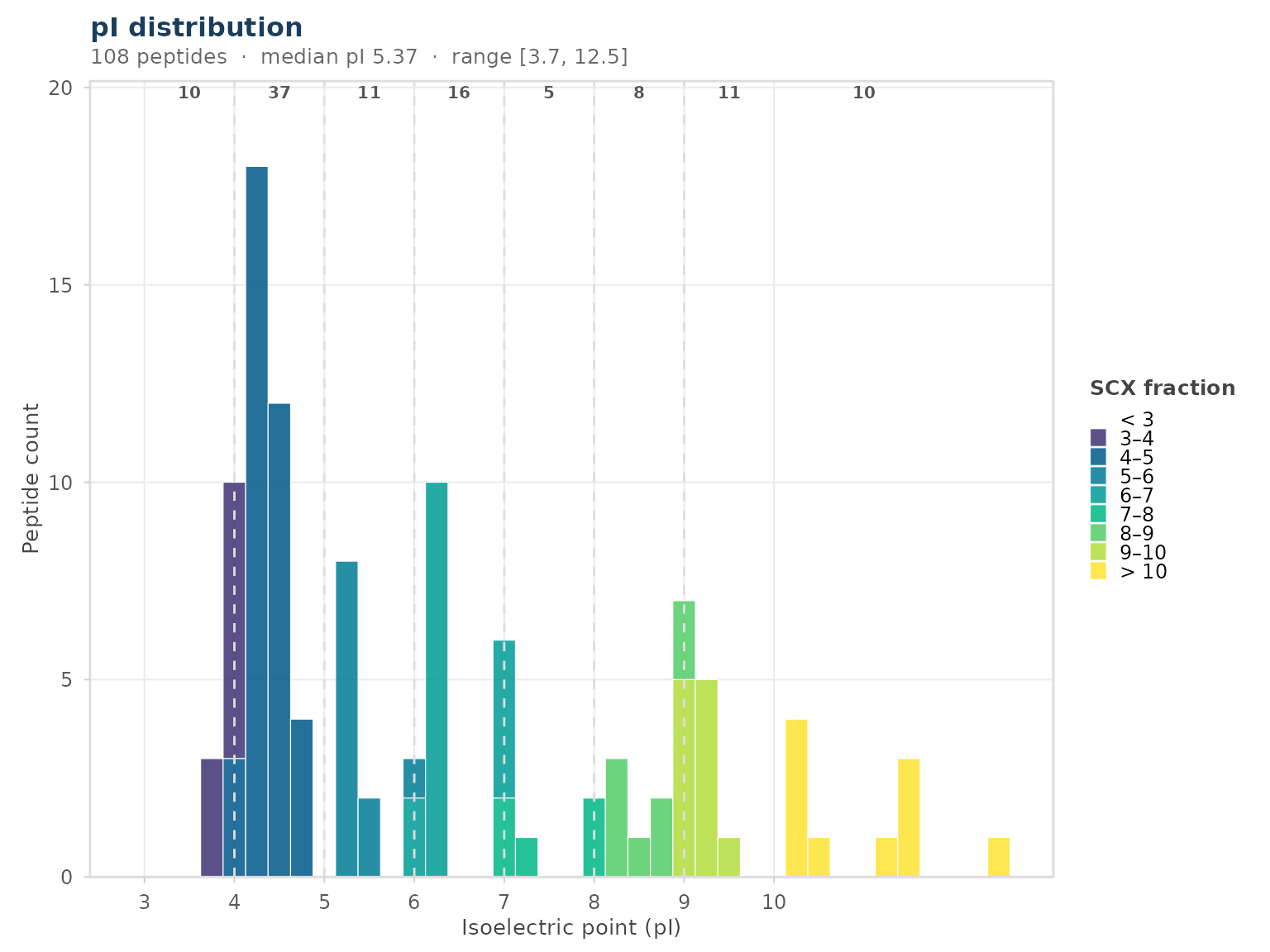

The pI plot places peptides into the configured SCX fraction bins.
pi_data <- score_peptides(bsa_trypsin$peptides,
enzyme = "trypsin", include_pI = TRUE)
plot_pI_distribution(pi_data)
m/z distribution

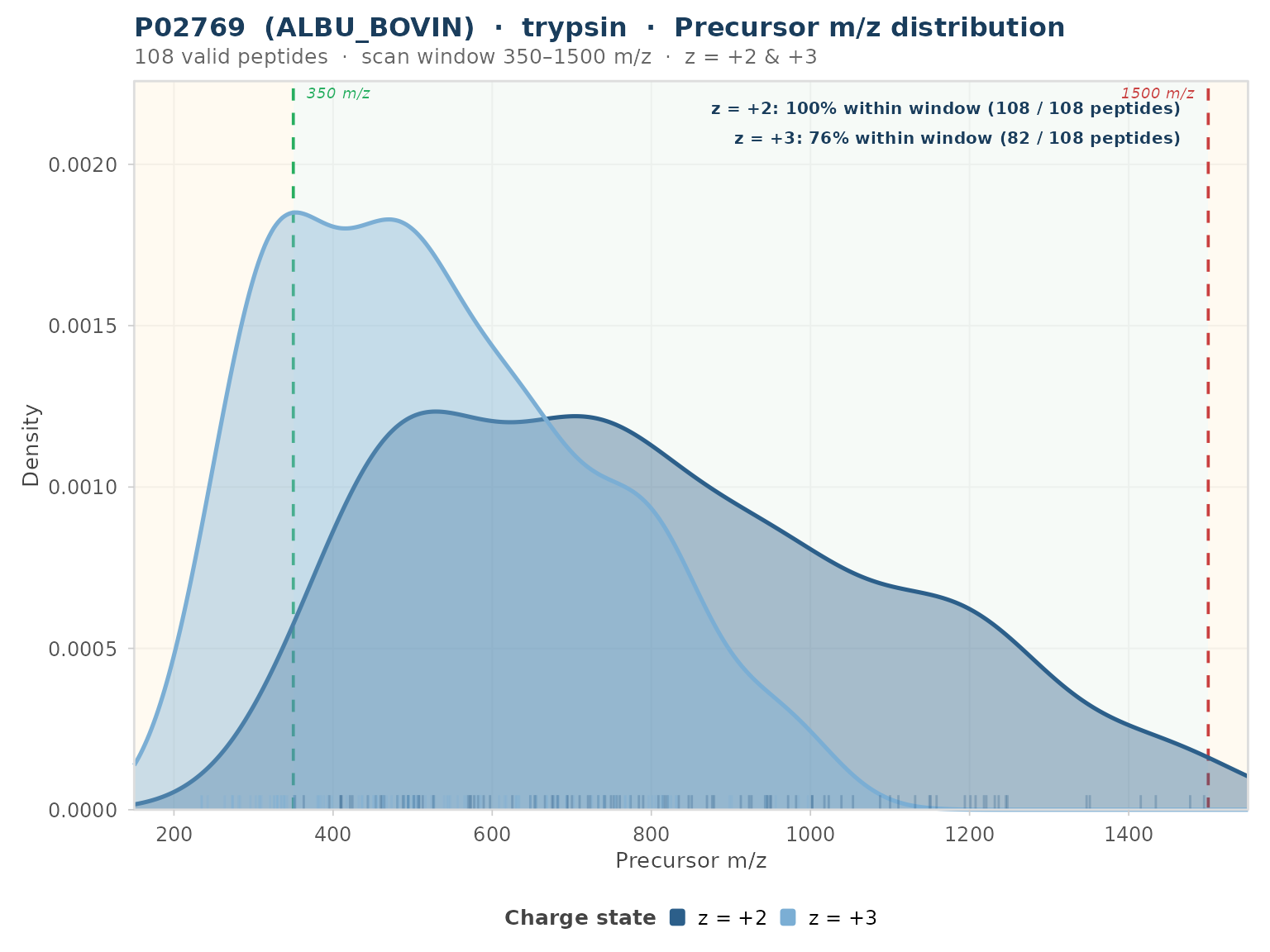

The m/z plot compares calculated peptide values with the configured scan range.
plot_mz_distribution(bsa_trypsin)
Missed-cleavage impact

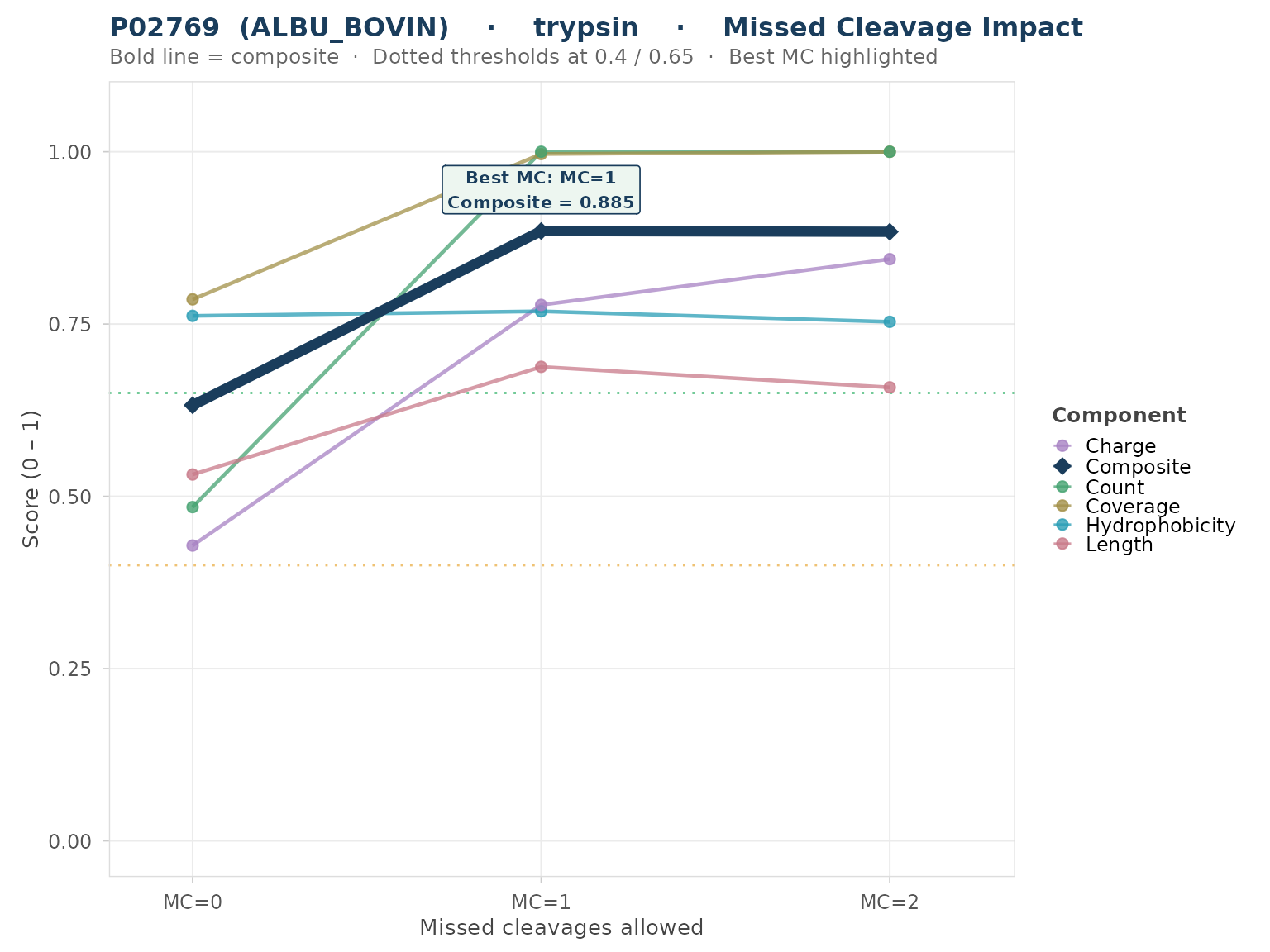

The missed-cleavage plot compares score components across the supplied missed-cleavage settings.
mc0 <- evaluate_digest(bsa_path, enzyme = "trypsin", missed_cleavages = 0)
mc1 <- evaluate_digest(bsa_path, enzyme = "trypsin", missed_cleavages = 1)
mc2 <- evaluate_digest(bsa_path, enzyme = "trypsin", missed_cleavages = 2)
plot_missed_cleavage_impact(list("MC=0" = mc0, "MC=1" = mc1, "MC=2" = mc2))
Proteome-scale views
Load the 50-protein fixture and define 10 enzymes. The examples use one core so that the vignette has a reproducible execution path.
library(Biostrings)
fasta_path <- system.file("extdata", "small_proteome_50_proteins.fasta",
package = "pepVet")
proteome <- readAAStringSet(fasta_path)
cat(sprintf("Loaded %d proteins\n", length(proteome)))## Loaded 50 proteins
enzymes <- c("trypsin", "lysc", "chymotrypsin-high",
"asp-n endopeptidase", "glutamyl endopeptidase",
"arg-c proteinase", "thermolysin", "pepsin",
"staphylococcal peptidase i", "proteinase k")
cat(sprintf("Evaluating %d enzymes ...\n", length(enzymes)))## Evaluating 10 enzymes ...
# Evaluate one enzyme for the proteome overview
batch_trypsin <- batch_evaluate(proteome, enzyme = "trypsin",
cores = 1L)Proteome overview
The trypsin overview contains the score distribution, component profile, and difficulty flags.

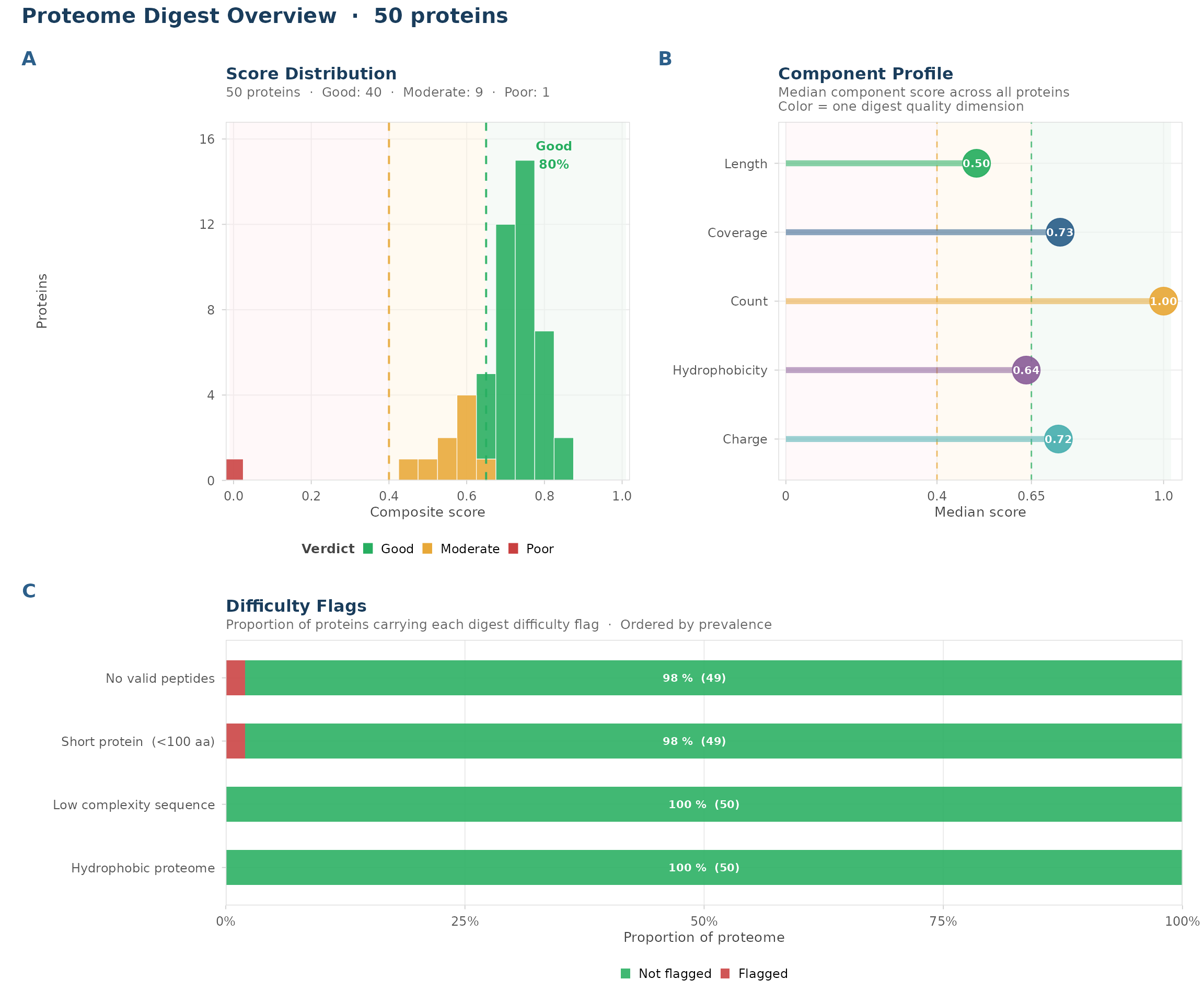

plot_proteome_overview(batch_trypsin)
Batch enzyme comparison
The batch comparison applies all 10 enzymes to the 50-protein fixture.
batch_comp <- batch_compare_enzymes(proteome, enzymes = enzymes, cores = 1L)## Scoring 50 proteins against 10 enzymes.## Warning: Protein "sp|P08246|ELNE_HUMAN Neutrophil elastase OS=Homo sapiens OX=9606
## GN=ELANE PE=1 SV=1" has no cleavage sites for "lysc". S_count and composite
## score set to 0; verdict set to Poor.## Warning: Protein "sp|P31358|CD52_HUMAN CAMPATH-1 antigen OS=Homo sapiens OX=9606 GN=CD52
## PE=1 SV=1" has no cleavage sites for "glutamyl endopeptidase". S_count and
## composite score set to 0; verdict set to Poor.## Warning: Protein "sp|P31358|CD52_HUMAN CAMPATH-1 antigen OS=Homo sapiens OX=9606 GN=CD52
## PE=1 SV=1" has no cleavage sites for "staphylococcal peptidase i". S_count and
## composite score set to 0; verdict set to Poor.

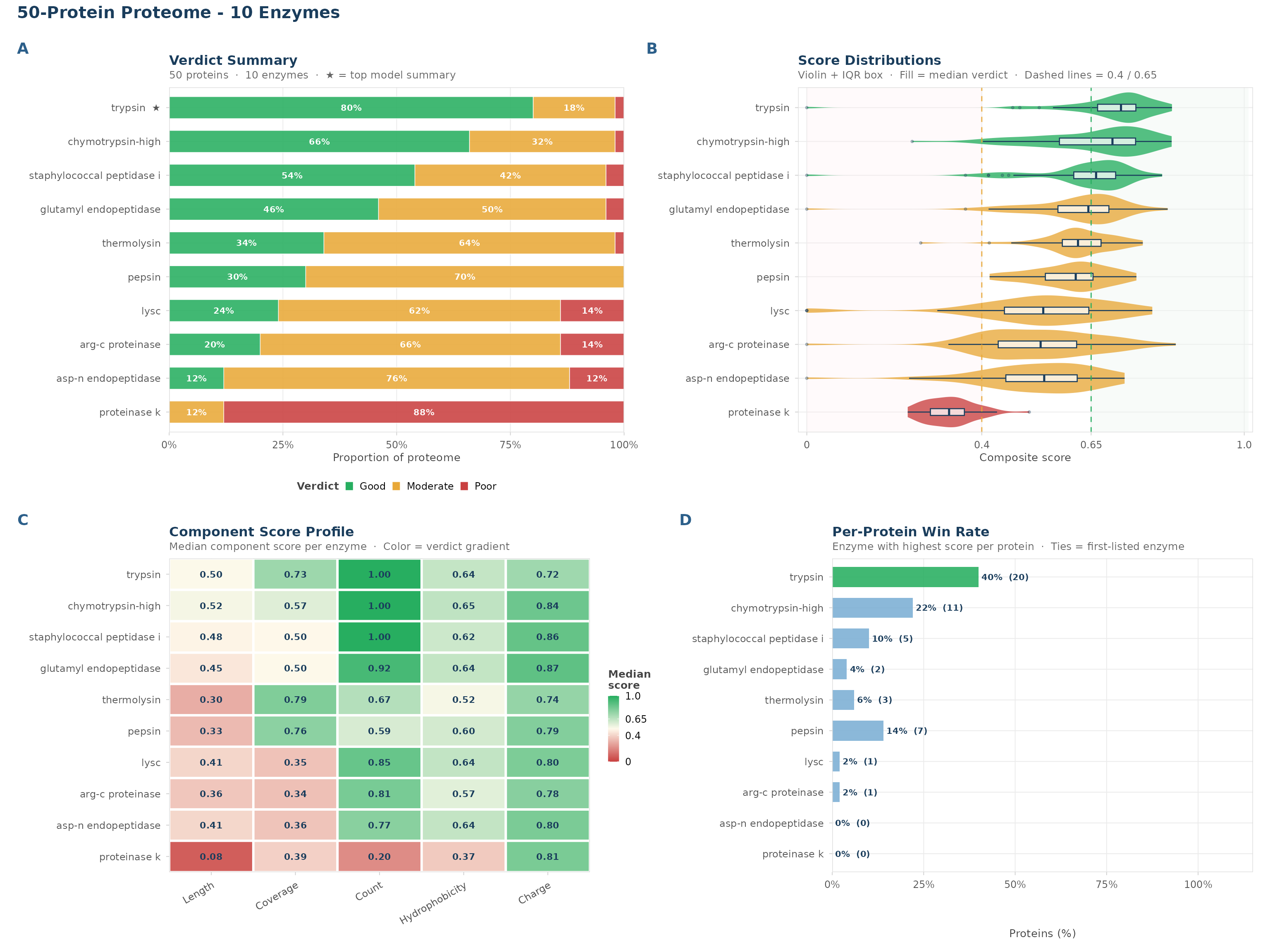

plot_batch_comparison(batch_comp,
title = sprintf("50-Protein Proteome - %d Enzymes", length(enzymes)))
Customising and exporting plots
Single-panel functions return ggplot2 objects. Multi-panel functions can return patchwork objects. Add compatible theme layers or scales before export.

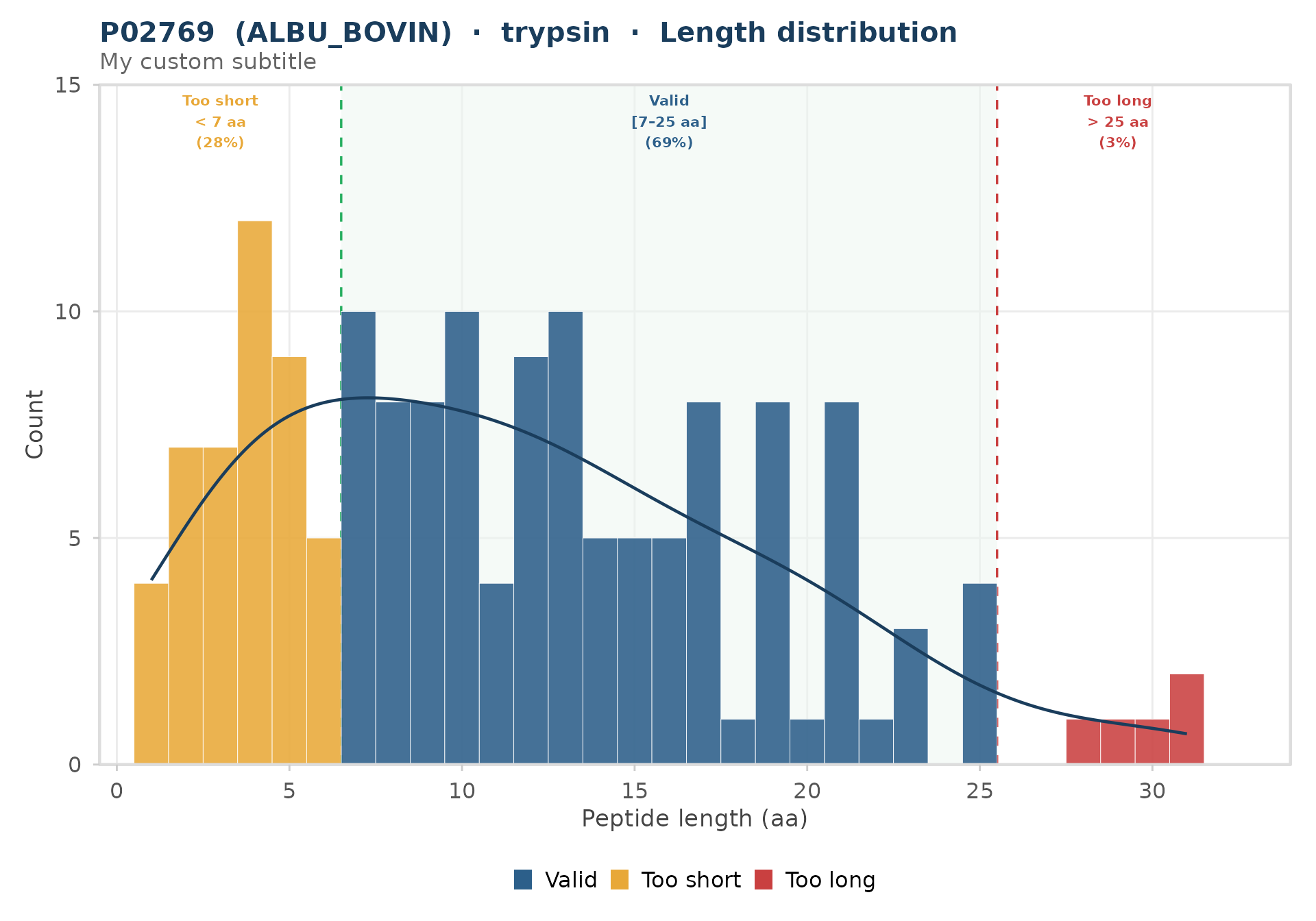

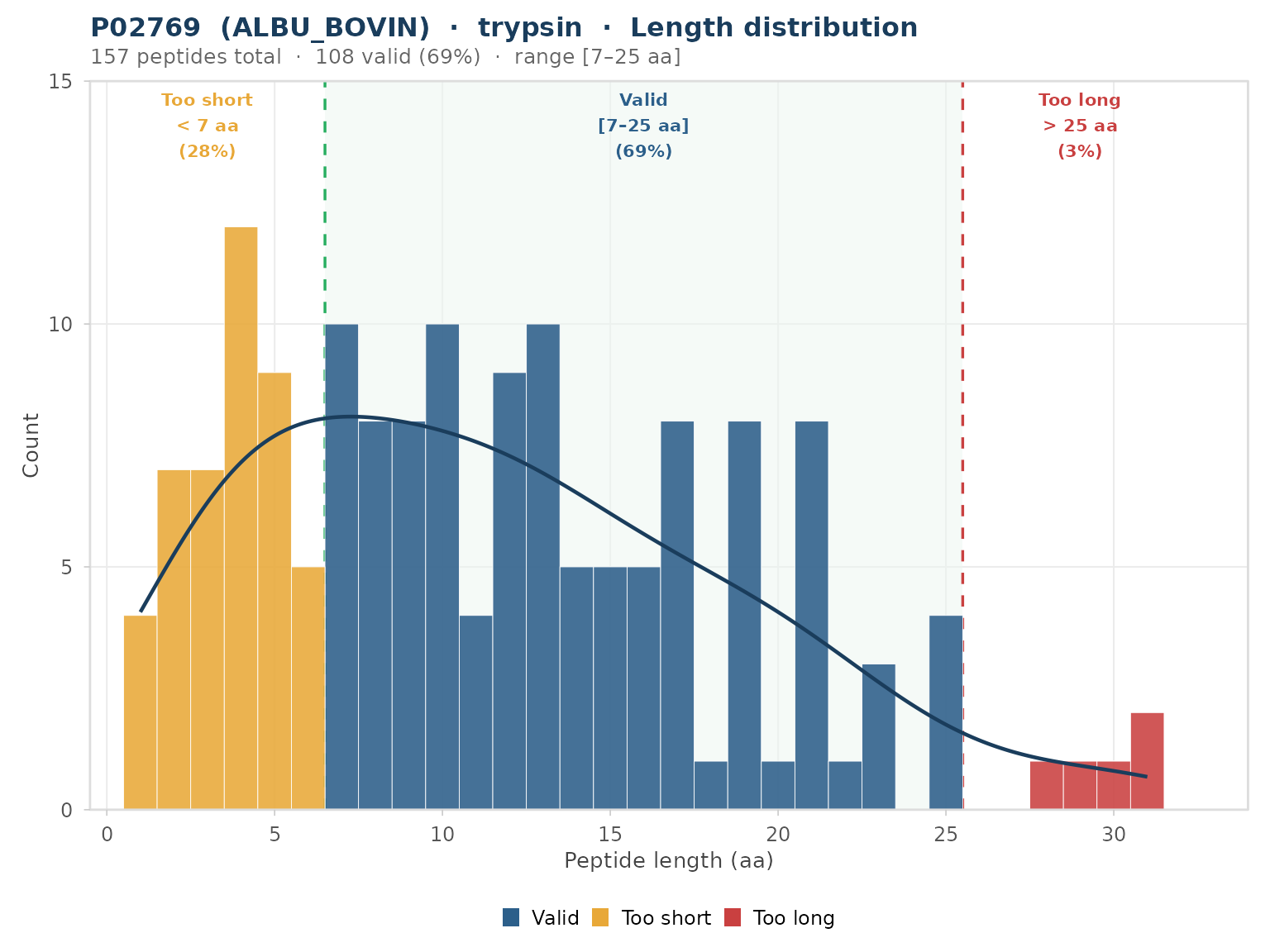

plot_length_distribution(bsa_trypsin) +
ggplot2::labs(subtitle = "My custom subtitle") +
pepvet_theme_presentation()
Use pepvet_save_figure() to save an output file:
p <- plot_digest_profile(bsa_trypsin)
pepvet_save_figure(p, "bsa_digest.png")Override colors and thresholds globally with
pepvet_plot_config():
pepvet_plot_config(
palette = list(brand = "#004488"),
params = list(verdict_good = 0.70)
)
pepvet_plot_config_reset()Session info
